K23 (PE/ALU/LSZH/DSTA/LSZH) B2ca

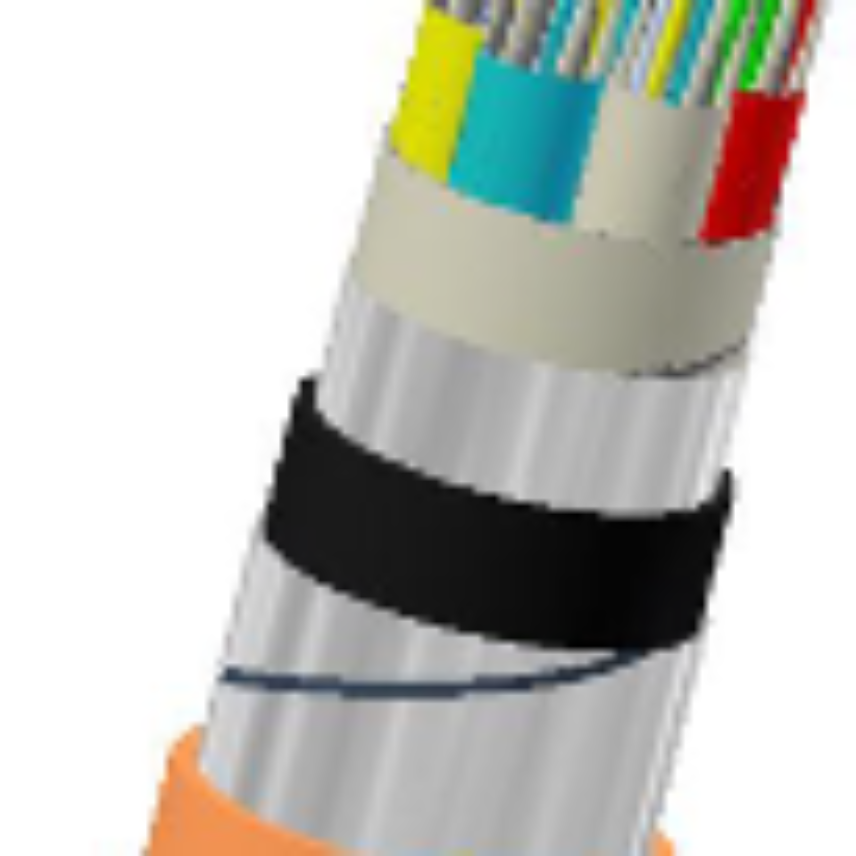

Cable construction

1. Copper conductor wire 1.2 mm.

2.Insulation: Polyethylene

Laying up: Two/Four insulated conductors twisted to a pair/quad according to the product.*

3. Wrapping: Several layers of plastic tape + Rip cord

4. Screen: One side copolymer coated Aluminum foil bonded to the

inner sheath. Tinned copper wire shall be longitudinally contact to metal

side of tape as drain wire.

5.Inner sheath : Low smoke zero halogen compound – Black

6. Bedding: Protection PP Cell tape

7. Armour: Two layers of galvanized steel tapes, thickness 0,20 mm

8. Outer sheath : Black***
Low smoke zero halogen compound
UV resistant

*Into pairs for 4P design
*** Other color on demand

Marking:

Pair Number – Conductor Diameter – Standard - NEXANS TR – Week/ Year + meter marking
