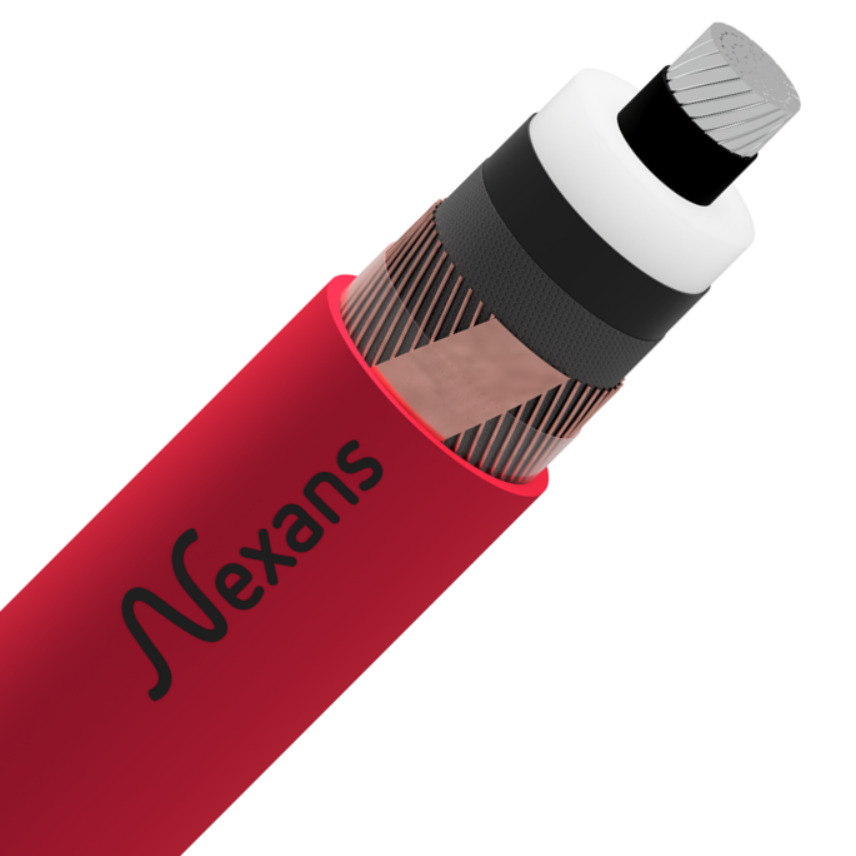

NA2XSY 1x240/25 mm2
NA2XSY 1x240/25 mm2
18/30 kV XLPE insulated single core cables with aluminium conductor
Read more- Nexans ref. : 10591736
- Country ref. : TR
- EAN : 8680969258296
Description
Description
Standards
-
ProductIEC 60502-2
Application
These are cables with low dielectric losses used in energy network with sudden load changes. Laid in residental or industrial areas, underground or in ducts.
Construction
- Conductor:Aluminium
- Conductor screen:Semi-conducting compound (XLPE)
- Insulation:XLPE
- Insulation screen:Semi-conducting compound (XLPE)
- Semi-conducting tape:Crape tape
- Metallic screen:Concentric / Copper wires + copper tape
- Outer sheath:PVC
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Conductor shape
Round, stranded
Material of the inner semi-conductor
XLPE
Insulation
XLPE
Material of the external semi-conductor
XLPE
Screen
Copper wire + copper tape
Outer sheath
PVC
Conductor flexibility
Class 2
Sheath colour
Red
Dimensional characteristics
Dimensional characteristics
Number of cores
1
Conductor cross-section
240 mm²
Nominal outer diameter
40.0 mm
Approximate weight
2010 kg/km
Delivery reel size for 1000m
- cm
Screen section
25 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
18/30 kV
Max. DC resistance of the conductor at 20°C
0.125 Ohm/km
Approx. inductance, flat formation
- mH/km
Approx. inductance, trefoil formation
- mH/km
Nominal phase capacitance
- µF / km
Perm. current rating buried 20°C - flat formation
- A
Perm. current rating buried 20°C - trefoil formation
367 A
Perm. current rating in air 30°C - flat formation
593 A
Perm. current rating in air 30°C - trefoil formation
- A
Permissible short circuit current conductor 1s
22.6 kA
Permissible short circuit current screen 1s
- kA
Usage characteristics
Usage characteristics
Operating temperature, range
-20 ... 90 °C
Short-circuit max. conductor temperature
250 °C
Flame retardant
IEC 60332-1-2
Bending factor when laying
12 (xD)
Max. conductor temperature in service
90 °C
