CU/LSZH EN 50525-3-31 Dca Class
CU/LSZH EN 50525-3-31 Dca Class

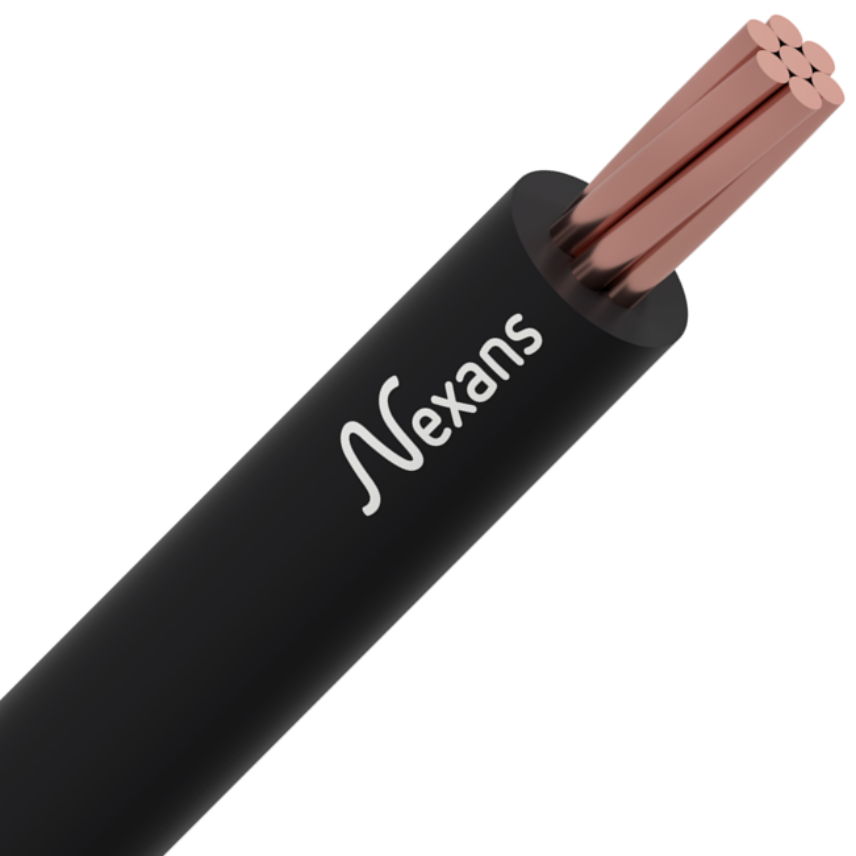

450/750 V LSZH insulated non-sheathed single core cables
Read moreCU/LSZH 1G6 mm2
Nexans ref. 10591002 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 6 mm²
- Average insulation thickness: 0.8 mm
- Approximate weight: 65 kg/km
- Outer Diameter: 4.3 mm
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 43 A
CU/LSZH 1G16 mm2
Nexans ref. 10591003 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 16 mm²
- Average insulation thickness: 1.0 mm
- Approximate weight: 165 kg/km
- Outer Diameter: 6.4 mm
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 80 A
CU/LSZH 1G25 mm2
Nexans ref. 10580476 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 25 mm²
- Average insulation thickness: 1.2 mm
- Approximate weight: 260 kg/km
- Outer Diameter: 7.9 mm
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 146 A
CU/LSZH 1G35 mm2
Nexans ref. 10580477 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 35 mm²
- Average insulation thickness: 1.2 mm
- Approximate weight: 350 kg/km
- Outer Diameter: 8.8 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 181 A
CU/LSZH 1G50 mm2
Nexans ref. 10580478 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 50 mm²
- Average insulation thickness: 1.4 mm
- Approximate weight: 470 kg/km
- Outer Diameter: 10.3 mm
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 219 A
CU/LSZH 1G70 mm2
Nexans ref. 10580479 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 70 mm²
- Average insulation thickness: 1.4 mm
- Approximate weight: 660 kg/km
- Outer Diameter: 11.9 mm
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 281 A
CU/LSZH 1G95 mm2
Nexans ref. 10580481 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 95 mm²
- Average insulation thickness: 1.6 mm
- Approximate weight: 920 kg/km
- Outer Diameter: 13.8 mm
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 341 A
CU/LSZH 1G120 mm2
Nexans ref. 10580473 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 120 mm²
- Average insulation thickness: 1.6 mm
- Approximate weight: 1140 kg/km
- Outer Diameter: 15.3 mm
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 396 A
CU/LSZH 1G150 mm2
Nexans ref. 10590957 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 150 mm²
- Average insulation thickness: 1.8 mm
- Approximate weight: 1410 kg/km
- Outer Diameter: 16.8 mm
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 456 A
CU/LSZH 1G185 mm2
Nexans ref. 10580474 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 185 mm²
- Average insulation thickness: 2.0 mm
- Approximate weight: 1760 kg/km
- Outer Diameter: 18.8 mm
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 521 A
CU/LSZH 1G240 mm2
Nexans ref. 10580475 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 240 mm²
- Average insulation thickness: 2.2 mm
- Approximate weight: 2300 kg/km
- Outer Diameter: 21.5 mm
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating in open air: 615 A
Description
Description
Application
In dry rooms, switching and distribution panels,for laying in conduit on and under plaster and / or on insulating supports above plaster.
Construction
- Conductor:Copper
- Insulation:LSZH
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Conductor flexibility
Stranded class 2
Conductor shape
Round, stranded
Insulation
LSZH
Colour
Green / yellow
Dimensional characteristics
Dimensional characteristics
Number of cores
1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Usage characteristics
Usage characteristics
Ambient installation temperature
5 °C
Operating temperature, range
-20 ... 70 °C
Short-circuit max. conductor temperature
160 °C
Flame retardant
IEC 60332-3 Cat. C
Max. conductor temperature in service
70 °C
