NA2XS(FL)2Y - XRUHAKXS 12/20 kV
NA2XS(FL)2Y - XRUHAKXS 12/20 kV
12/20 kV XLPE insulated single core cables with aluminium conductor and PE outer sheath with radial and longitudinal water blocking
Read moreNA2XS(FL)2Y - XRUHAKXS 1x120/25 mm2
Nexans ref. 10572778 - Country ref. TR
- Packaging: Drum (1000m)
- Conductor cross-section: 120 mm²
NA2XS(FL)2Y - XRUHAKXS 1x120/50 mm2
Nexans ref. 10573287 - Country ref. TR
- Packaging: Drum (1000m)
- Conductor cross-section: 120 mm²
NA2XS(FL)2Y - XRUHAKXS 1x240/50 mm2
Nexans ref. 10573288 - Country ref. TR
- Packaging: Drum (1000m)
- Conductor cross-section: 240 mm²
NA2XS(FL)2Y - XRUHAKXS 1x630/50 mm2
Nexans ref. 10580410 - Country ref. TR
- Packaging: Drum (1000m)
- Conductor cross-section: 630 mm²
Description
Description
Standards
-
InternationalIEC 60502-2
Application:
These are cables with low dielectric losses used in energy network with sudden load changes. Laid in residental or industrial areas, underground or in ducts.

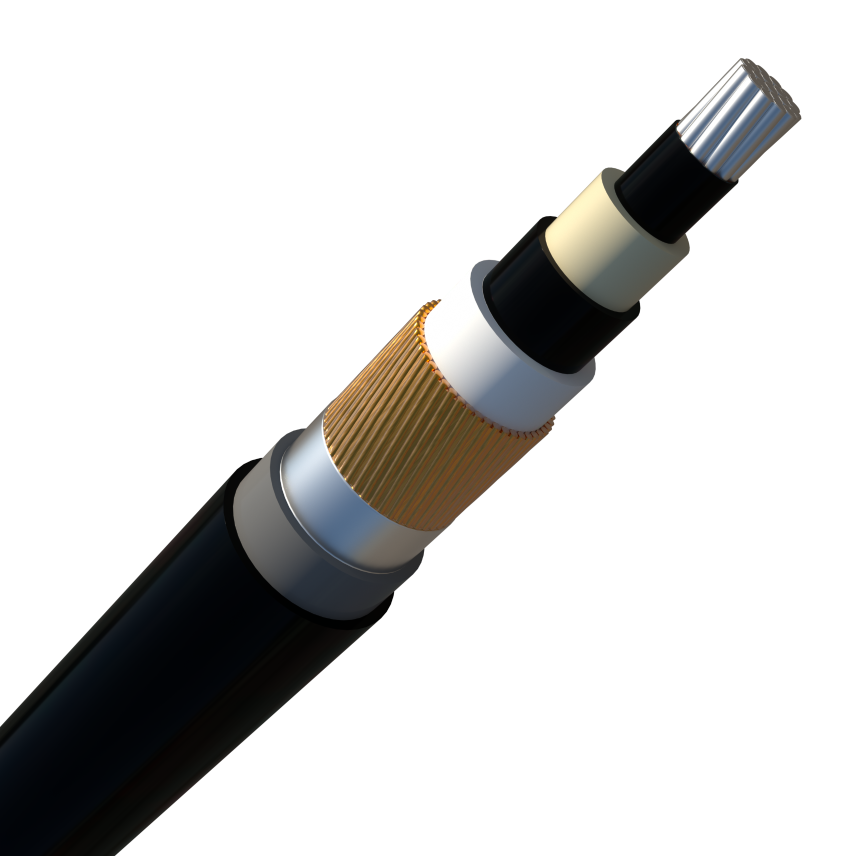

Construction:
- Conductor:Aluminium
- Conductor screen:Semi-conducting compound (XLPE)
- Insulation:XLPE
- Insulation screen:Semi-conducting compound (XLPE) + water swelling tape + copper wires with counter helix of copper tape
- Outer sheath: Longitudinal Aluminium foil sticking to protective sheath PE
Marking:
NEXANS IEC 60502 XRUHAKXS (NA2XS(FL)2Y) «nb cores= of x-section=mm2» 12/20 kV ''YEAR'' Fca+ METER MARKING
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Stranded class 2
Halogen free
IEC 60754-1; IEC 60754-2
Longitudinally watertight
Yes
Radial waterproof
Yes
Dimensional characteristics
Dimensional characteristics
Number of cores
1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12/20 kV
Usage characteristics
Usage characteristics
Operating temperature, range
-20 ... 60 °C
Short-circuit max. conductor temperature
250 °C
Longitudinal water tightness
Yes
Max. conductor temperature in service
90 °C
Radial water tightness
Yes
U.V resistance
Yes
