CU/XLPE/CTS/LSZH/SWA/LSZH - 6.35/11 kV - Cca Class
CU/XLPE/CTS/LSZH/SWA/LSZH - 6.35/11 kV - Cca Class
6.35/11 kV XLPE insulated, steel wire armoured, three core LSZH sheathed cables with copper conductor
Read moreCU/XLPE/CTS/LSZH/SWA/LSZH 3x70 mm2
Nexans ref. 10551043 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
CU/XLPE/CTS/LSZH/SWA/LSZH 3x95 mm2
Nexans ref. 10551044 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
CU/XLPE/CTS/LSZH/SWA/LSZH 3x120 mm2
Nexans ref. 10551045 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
CU/XLPE/CTS/LSZH/SWA/LSZH 3x150 mm2
Nexans ref. 10551046 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
CU/XLPE/CTS/LSZH/SWA/LSZH 3x185 mm2
Nexans ref. 10551047 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
CU/XLPE/CTS/LSZH/SWA/LSZH 3x240 mm2
Nexans ref. 10551048 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
CU/XLPE/CTS/LSZH/SWA/LSZH 3x300 mm2
Nexans ref. 10551049 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
CU/XLPE/CTS/LSZH/SWA/LSZH 3x400 mm2
Nexans ref. 10551050 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 400 mm²
Description
Description
Standards
-
NationalBS 7835
Application:
Suitable for installations in energy networks where for safety reasons low smoke halogen free and flam retardant cables are specified. The cable is suitable for installation undergorund, in ducts or in air.

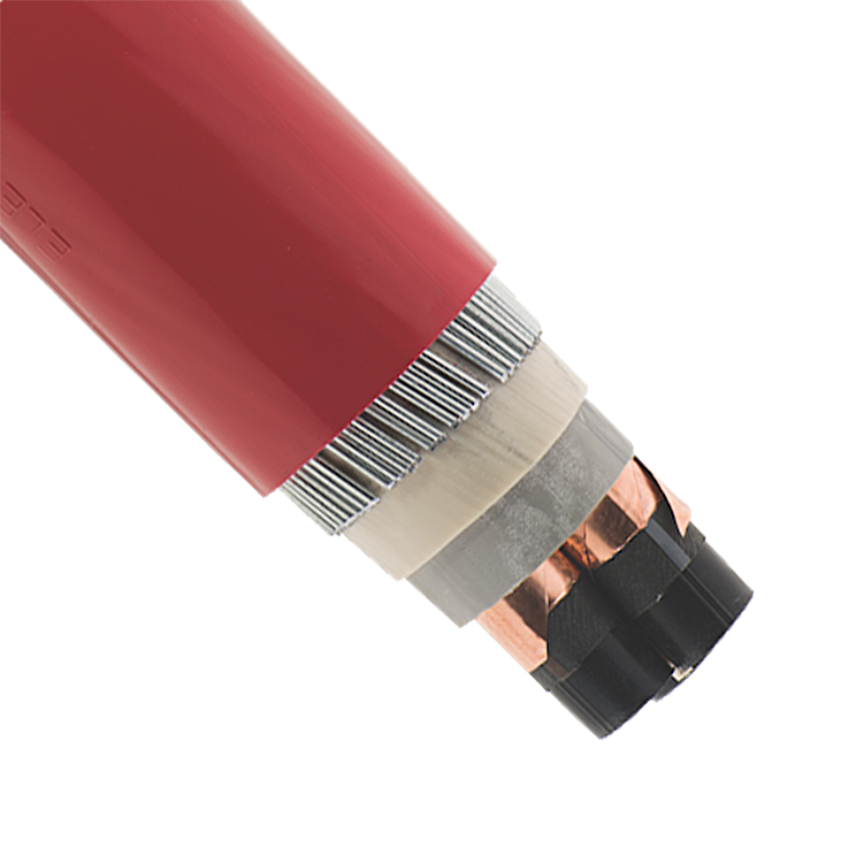

Construction:
- Conductor:Copper
- Conductor screen:Semi-conducting compound(XLPE)
- Insulation:XLPE
- Insulation screen:Semi-conducting compound(XLPE)
- Semi-conducting tape:Crape paper
- Metallic screen:Copper tape
- Filler:LSZH
- Separation sheath:LSZH
- Armour:Single layer galvanized steel wire
- Outer sheath:LSZH
Marking
ELECTRIC CABLE 11000 V BS 7835 NEXANS i Number of cores x cross section ''YEAR''
