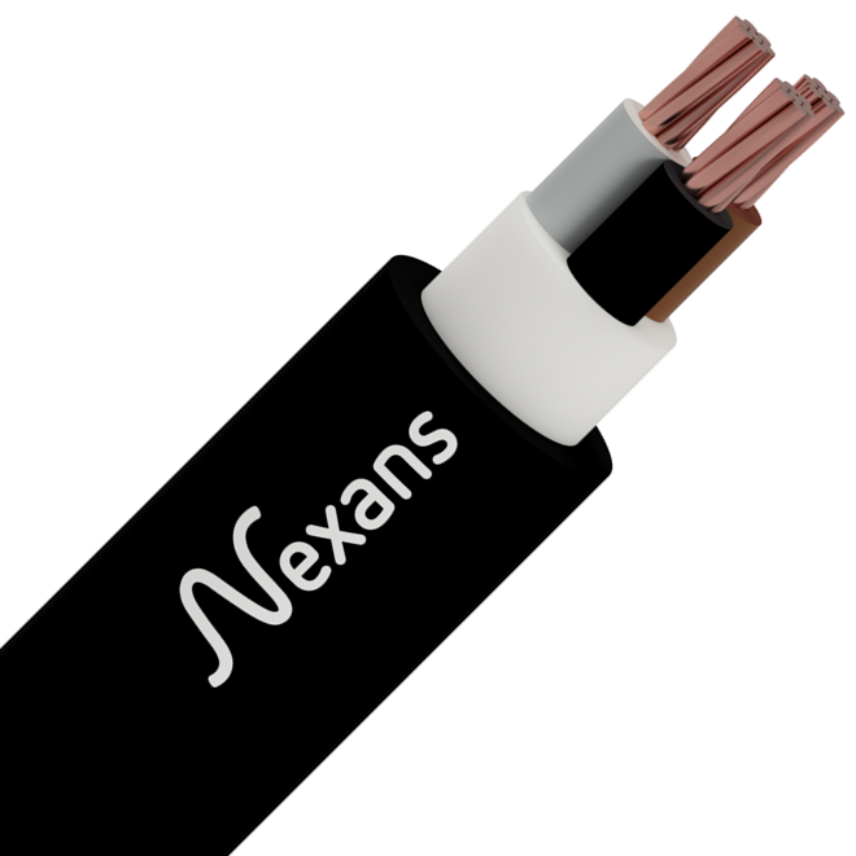

YVV (TSE) / NYY (IEC) Multi Core Cables Eca Class

YVV (TSE) / NYY (IEC) Multi Core Cables Eca Class

YVV (TSE) / NYY (IEC) Multi Core Cables Eca Class

0.6/1 kV PVC insulated, multi core cables with copper conductor

Read more
Download all documents
Contact us

Products

Actions
Filters

  • products

NYY 12G2.5 mm2

Nexans ref. 10567992 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Numbers
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 12 A
  • Permissible current rating buried/direct 20°C: 11 A



NYY 2x6 mm2

Nexans ref. 10567978 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 51 A
  • Permissible current rating buried/direct 20°C: 48 A



NYY 3G4 mm2

Nexans ref. 10567979 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 34 A
  • Permissible current rating buried/direct 20°C: 33 A



NYY 3G6 mm2

Nexans ref. 10567980 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 43 A
  • Permissible current rating buried/direct 20°C: 41 A



NYY 3G95 mm2

Nexans ref. 10567981 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 238 A
  • Permissible current rating buried/direct 20°C: 193 A



NYY 3x150+1G70 mm2

Nexans ref. 10567986 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 319 A
  • Permissible current rating buried/direct 20°C: 246 A



NYY 4G10 mm2

Nexans ref. 10567983 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 60 A
  • Permissible current rating buried/direct 20°C: 54 A



NYY 4G16 mm2

Nexans ref. 10567984 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 80 A
  • Permissible current rating buried/direct 20°C: 70 A



NYY 4G25 mm2

Nexans ref. 10567985 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 101 A
  • Permissible current rating buried/direct 20°C: 92 A



NYY 4G4 mm2

Nexans ref. 10567982 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 34 A
  • Permissible current rating buried/direct 20°C: 33 A



NYY 5G16 mm2

Nexans ref. 10567987 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 80 A
  • Permissible current rating buried/direct 20°C: 70 A



NYY 5G25 mm2

Nexans ref. 10567988 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 101 A
  • Permissible current rating buried/direct 20°C: 92 A



NYY 5G35 mm2

Nexans ref. 10567989 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 126 A
  • Permissible current rating buried/direct 20°C: 110 A



NYY 5G70 mm2

Nexans ref. 10567990 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 196 A
  • Permissible current rating buried/direct 20°C: 162 A



NYY 5G95 mm2

Nexans ref. 10567991 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 238 A
  • Permissible current rating buried/direct 20°C: 193 A



YVV (NYY) 2x1.5 mm2

Nexans ref. 10517181 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 22 A
  • Permissible current rating buried/direct 20°C: 22 A



YVV (NYY) 2x10 mm2

Nexans ref. 10517272 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 70 A
  • Permissible current rating buried/direct 20°C: 64 A



YVV (NYY) 2x16 mm2

Nexans ref. 10517271 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 94 A
  • Permissible current rating buried/direct 20°C: 83 A



YVV (NYY) 2x2.5 mm2

Nexans ref. 10517182 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 30 A
  • Permissible current rating buried/direct 20°C: 28 A



YVV (NYY) 2x2.5 mm2

Nexans ref. 10535305 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Black, blue
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 30 A
  • Permissible current rating buried/direct 20°C: 28 A



YVV (NYY) 2x25 mm2

Nexans ref. 10517270 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 119 A
  • Permissible current rating buried/direct 20°C: 110 A



YVV (NYY) 2x4 mm2

Nexans ref. 10517183 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 40 A
  • Permissible current rating buried/direct 20°C: 38 A



YVV (NYY) 2x6 mm2

Nexans ref. 10517184 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 51 A
  • Permissible current rating buried/direct 20°C: 48 A



YVV (NYY) 2x95 mm2

Nexans ref. 10535303 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 282 A
  • Permissible current rating buried/direct 20°C: 230 A



YVV (NYY) 3G1.5 mm2

Nexans ref. 10540402 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 18 A
  • Permissible current rating buried/direct 20°C: 19 A



YVV (NYY) 3G10 mm2

Nexans ref. 10568383 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 60 A
  • Permissible current rating buried/direct 20°C: 54 A



YVV (NYY) 3G16 mm2

Nexans ref. 10560262 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 80 A
  • Permissible current rating buried/direct 20°C: 70 A



YVV (NYY) 3G2.5 mm2

Nexans ref. 10532328 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 25 A
  • Permissible current rating buried/direct 20°C: 24 A



YVV (NYY) 3G2.5 mm2

Nexans ref. 10533658 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Black, blue, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 25 A
  • Permissible current rating buried/direct 20°C: 24 A



YVV (NYY) 3G4 mm2

Nexans ref. 10533657 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Black, blue, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 34 A
  • Permissible current rating buried/direct 20°C: 33 A



YVV (NYY) 3G6 mm2

Nexans ref. 10533656 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Stranded class 2
  • Core identification: Black, blue, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 43 A
  • Permissible current rating buried/direct 20°C: 41 A



YVV (NYY) 3G6 mm2

Nexans ref. 10540404 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 43 A
  • Permissible current rating buried/direct 20°C: 41 A



YVV (NYY) 3x1.5 mm2

Nexans ref. 10518122 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 18 A
  • Permissible current rating buried/direct 20°C: 19 A



YVV (NYY) 3x10 mm2

Nexans ref. 10518108 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 60 A
  • Permissible current rating buried/direct 20°C: 54 A



YVV (NYY) 3x10+1G6 mm2

Nexans ref. 10550106 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 60 A
  • Permissible current rating buried/direct 20°C: 54 A



YVV (NYY) 3x120+1G70 mm2

Nexans ref. 10550108 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 276 A
  • Permissible current rating buried/direct 20°C: 220 A



YVV (NYY) 3x120+1x70 mm2

Nexans ref. 10518167 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 276 A
  • Permissible current rating buried/direct 20°C: 220 A



YVV (NYY) 3x150+1G70 mm2

Nexans ref. 10550109 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 319 A
  • Permissible current rating buried/direct 20°C: 246 A



YVV (NYY) 3x150+1x70 mm2

Nexans ref. 10517250 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 319 A
  • Permissible current rating buried/direct 20°C: 246 A



YVV (NYY) 3x16 mm2

Nexans ref. 10518109 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 80 A
  • Permissible current rating buried/direct 20°C: 70 A



YVV (NYY) 3x16+1G10 mm2

Nexans ref. 10550107 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 80 A
  • Permissible current rating buried/direct 20°C: 70 A



YVV (NYY) 3x16+1x10 mm2

Nexans ref. 10518173 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 80 A
  • Permissible current rating buried/direct 20°C: 70 A



YVV (NYY) 3x185+1x95 mm2

Nexans ref. 10517249 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 364 A
  • Permissible current rating buried/direct 20°C: 278 A



YVV (NYY) 3x2.5 mm2

Nexans ref. 10518123 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 25 A
  • Permissible current rating buried/direct 20°C: 24 A



YVV (NYY) 3x2.5 mm2

Nexans ref. 10518106 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 25 A
  • Permissible current rating buried/direct 20°C: 24 A



YVV (NYY) 3x240+1x120 mm2

Nexans ref. 10518166 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 430 A
  • Permissible current rating buried/direct 20°C: 320 A



YVV (NYY) 3x35+1x16 mm2

Nexans ref. 10518171 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 126 A
  • Permissible current rating buried/direct 20°C: 110 A



YVV (NYY) 3x4 mm2

Nexans ref. 10518124 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 34 A
  • Permissible current rating buried/direct 20°C: 33 A



YVV (NYY) 3x4 mm2

Nexans ref. 10557562 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 34 A
  • Permissible current rating buried/direct 20°C: 33 A



YVV (NYY) 3x50+1x25 mm2

Nexans ref. 10518170 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 153 A
  • Permissible current rating buried/direct 20°C: 130 A



YVV (NYY) 3x6 mm2

Nexans ref. 10517188 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 43 A
  • Permissible current rating buried/direct 20°C: 41 A



YVV (NYY) 3x6 mm2

Nexans ref. 10518107 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 43 A
  • Permissible current rating buried/direct 20°C: 41 A



YVV (NYY) 3x70+1G35 mm2

Nexans ref. 10543217 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 196 A
  • Permissible current rating buried/direct 20°C: 162 A



YVV (NYY) 3x70+1x35 mm2

Nexans ref. 10518169 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 196 A
  • Permissible current rating buried/direct 20°C: 162 A



YVV (NYY) 3x95+1G50 mm2

Nexans ref. 10535641 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 238 A
  • Permissible current rating buried/direct 20°C: 193 A



YVV (NYY) 3x95+1x50 mm2

Nexans ref. 10518168 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 238 A
  • Permissible current rating buried/direct 20°C: 193 A



YVV (NYY) 4G1.5 mm2

Nexans ref. 10537949 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 18 A
  • Permissible current rating buried/direct 20°C: 19 A



YVV (NYY) 4G10 mm2

Nexans ref. 10537945 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 60 A
  • Permissible current rating buried/direct 20°C: 54 A



YVV (NYY) 4G16 mm2

Nexans ref. 10537946 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 80 A
  • Permissible current rating buried/direct 20°C: 70 A



YVV (NYY) 4G2.5 mm2

Nexans ref. 10532329 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 25 A
  • Permissible current rating buried/direct 20°C: 24 A



YVV (NYY) 4G25 mm2

Nexans ref. 10537947 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 101 A
  • Permissible current rating buried/direct 20°C: 92 A



YVV (NYY) 4G4 mm2

Nexans ref. 10537950 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 34 A
  • Permissible current rating buried/direct 20°C: 33 A



YVV (NYY) 4G6 mm2

Nexans ref. 10564426 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 43 A
  • Permissible current rating buried/direct 20°C: 41 A



YVV (NYY) 4G70 mm2

Nexans ref. 10537948 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 196 A
  • Permissible current rating buried/direct 20°C: 162 A



YVV (NYY) 4x1.5 mm2

Nexans ref. 10518125 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 18 A
  • Permissible current rating buried/direct 20°C: 19 A



YVV (NYY) 4x10 mm2

Nexans ref. 10518165 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 60 A
  • Permissible current rating buried/direct 20°C: 54 A



YVV (NYY) 4x120 mm2

Nexans ref. 10518153 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 276 A
  • Permissible current rating buried/direct 20°C: 220 A



YVV (NYY) 4x150 mm2

Nexans ref. 10518154 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 319 A
  • Permissible current rating buried/direct 20°C: 246 A



YVV (NYY) 4x16 mm2

Nexans ref. 10518164 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 80 A
  • Permissible current rating buried/direct 20°C: 70 A



YVV (NYY) 4x185 mm2

Nexans ref. 10517235 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 364 A
  • Permissible current rating buried/direct 20°C: 278 A



YVV (NYY) 4x2.5 mm2

Nexans ref. 10518126 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 25 A
  • Permissible current rating buried/direct 20°C: 24 A



YVV (NYY) 4x240 mm2

Nexans ref. 10518155 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 430 A
  • Permissible current rating buried/direct 20°C: 320 A



YVV (NYY) 4x25 mm2

Nexans ref. 10518163 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 101 A
  • Permissible current rating buried/direct 20°C: 92 A



YVV (NYY) 4x35 mm2

Nexans ref. 10518162 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 126 A
  • Permissible current rating buried/direct 20°C: 110 A



YVV (NYY) 4x4 mm2

Nexans ref. 10518129 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 34 A
  • Permissible current rating buried/direct 20°C: 33 A



YVV (NYY) 4x4 mm2

Nexans ref. 10533578 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 34 A
  • Permissible current rating buried/direct 20°C: 33 A



YVV (NYY) 4x50 mm2

Nexans ref. 10518161 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 153 A
  • Permissible current rating buried/direct 20°C: 130 A



YVV (NYY) 4x6 mm2

Nexans ref. 10518130 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 43 A
  • Permissible current rating buried/direct 20°C: 41 A



YVV (NYY) 4x70 mm2

Nexans ref. 10518152 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 196 A
  • Permissible current rating buried/direct 20°C: 162 A



YVV (NYY) 4x95 mm2

Nexans ref. 10517238 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 238 A
  • Permissible current rating buried/direct 20°C: 193 A



YVV (NYY) 5G1.5 mm2

Nexans ref. 10517193 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 18 A
  • Permissible current rating buried/direct 20°C: 19 A



YVV (NYY) 5G10 mm2

Nexans ref. 10517142 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 60 A
  • Permissible current rating buried/direct 20°C: 54 A



YVV (NYY) 5G16 mm2

Nexans ref. 10518050 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 80 A
  • Permissible current rating buried/direct 20°C: 70 A



YVV (NYY) 5G2.5 mm2

Nexans ref. 10518131 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 25 A
  • Permissible current rating buried/direct 20°C: 24 A



YVV (NYY) 5G25 mm2

Nexans ref. 10530287 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 101 A
  • Permissible current rating buried/direct 20°C: 92 A



YVV (NYY) 5G35 mm2

Nexans ref. 10532330 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 126 A
  • Permissible current rating buried/direct 20°C: 110 A



YVV (NYY) 5G4 mm2

Nexans ref. 10517195 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 34 A
  • Permissible current rating buried/direct 20°C: 33 A



YVV (NYY) 5G50 mm2

Nexans ref. 10540878 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 153 A
  • Permissible current rating buried/direct 20°C: 130 A



YVV (NYY) 5G6 mm2

Nexans ref. 10518175 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 43 A
  • Permissible current rating buried/direct 20°C: 41 A



YVV (NYY) 5G6 mm2

Nexans ref. 10519415 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 43 A
  • Permissible current rating buried/direct 20°C: 41 A



YVV (NYY) 5x16 mm2

Nexans ref. 10557564 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Numbers
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 80 A
  • Permissible current rating buried/direct 20°C: 70 A



YVV (NYY) 5x2.5 mm2

Nexans ref. 10518068 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Numbers
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 25 A
  • Permissible current rating buried/direct 20°C: 24 A



YVV (NYY) 5x6 mm2

Nexans ref. 10557563 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Numbers
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 43 A
  • Permissible current rating buried/direct 20°C: 41 A



YVV 3G2.5 mm2

Nexans ref. 10572619 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 25 A
  • Permissible current rating buried/direct 20°C: 24 A



YVV 3G2.5 mm2

Nexans ref. - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 25 A
  • Permissible current rating buried/direct 20°C: 24 A



YVV 3G25 mm2

Nexans ref. 10582283 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 101 A
  • Permissible current rating buried/direct 20°C: 92 A



YVV 3G6 mm2

Nexans ref. 10572618 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 43 A
  • Permissible current rating buried/direct 20°C: 41 A



YVV 3x16+1G10 mm2

Nexans ref. 10566857 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Black, blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 80 A
  • Permissible current rating buried/direct 20°C: 70 A



YVV 3x25+1G16 mm2

Nexans ref. 10564427 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Black, blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 101 A
  • Permissible current rating buried/direct 20°C: 92 A



YVV 3x25+1x16 mm2

Nexans ref. 10518172 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey
  • With Green/Yellow core: No
  • Perm current rating in air 30°C: 101 A
  • Permissible current rating buried/direct 20°C: 92 A



YVV 3x50+1G25 mm2

Nexans ref. 10566858 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Black, blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 153 A
  • Permissible current rating buried/direct 20°C: 130 A



YVV 3x70+1G35 mm2

Nexans ref. 10566859 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Black, blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 196 A
  • Permissible current rating buried/direct 20°C: 162 A



YVV 4G2.5 mm2

Nexans ref. 10566870 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Black, blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 25 A
  • Permissible current rating buried/direct 20°C: 24 A



YVV 4G2.5 mm2

Nexans ref. 10572621 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 25 A
  • Permissible current rating buried/direct 20°C: 24 A



YVV 4G25 mm2

Nexans ref. 10566871 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Black, blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 101 A
  • Permissible current rating buried/direct 20°C: 92 A



YVV 4G4 mm2

Nexans ref. 10566872 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular solid (RE)
  • Conductor flexibility: Solid class 1
  • Core identification: Black, blue, brown, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 34 A
  • Permissible current rating buried/direct 20°C: 33 A



YVV 4G6 mm2

Nexans ref. 10572622 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 43 A
  • Permissible current rating buried/direct 20°C: 41 A



YVV 5G2.5 mm2

Nexans ref. 10556672 - Country ref. TR

  • Packaging: Cut to length (m)
  • Conductor shape: Circular stranded (RM)
  • Conductor flexibility: Stranded class 2
  • Core identification: Blue, brown, black, grey, green / yellow
  • With Green/Yellow core: Yes
  • Perm current rating in air 30°C: 25 A
  • Permissible current rating buried/direct 20°C: 24 A



Description

Description

Standards

  • Product
    IEC 60502-1
  • National
    TS IEC 60502

Application

Used as lighting and power distrubution cable. Installed in areas where severe mechanical stress is avoided. Can be laid in doors, outdoors buried or in cable tranches.

Construction

  1. Conductor:Copper
  2. Insulation:PVC
  3. Filler:PVC
  4. Outer Sheath:PVC

Characteristics

Characteristics

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Usage characteristics

Usage characteristics

Bending factor when laying
8 (xD)
Flame retardant
IEC 60332-1-2
Maximum operating temperature
70 °C
Operating temperature, range
-20 ... 70 °C
Short-circuit max. conductor temperature
160 °C

Resources

Resources

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
