N2XCH Single Core Screened Cables - Cca Class

Products

N2XCH 1x120/16 mm2

Nexans ref. 10582962 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor cross-section: 120 mm²
  • Screen section: 16 mm²
  • Outer Diameter: 19.8 mm
  • Approximate weight: 1380 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 500 A
  • Permissible current rating when buried: 257 A



N2XCH 1x150/70 mm2

Nexans ref. 10582963 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor cross-section: 150 mm²
  • Screen section: 70 mm²
  • Outer Diameter: 23 mm
  • Approximate weight: 2150 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 577 A
  • Permissible current rating when buried: 287 A



Description

Description

Standards

  • Product
    IEC 60502-1

Application

  • Industrial and Commercial Electrical Installations
  • Electrical panels and control panels
  • Indoor applications with fire risk (hotels, schools, high-rise buildings, hospitals, data centers, airports, offices etc.)
  • Installations in public places
  • Tunnels and underground infrastructures
  • Wiring for indoor power and lighting circuits in dry environments

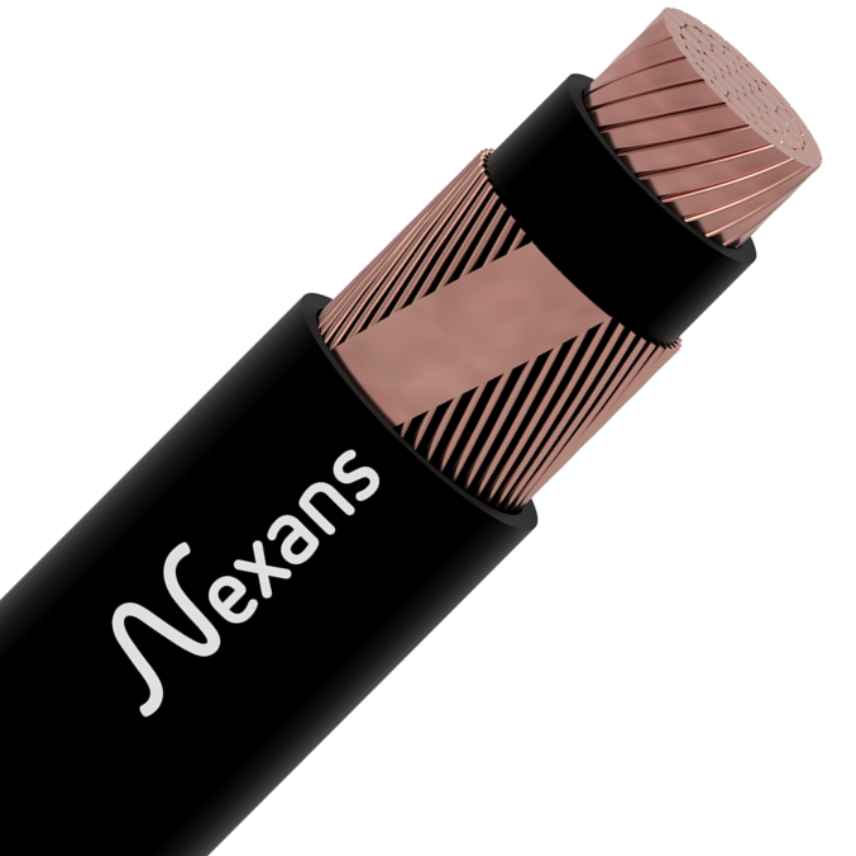

Construction

  1. Conductor:copper
  2. Insulation:XLPE
  3. Filler:LSZH
  4. Concentric screen:Copper wire + copper tape
  5. Outher sheath:LSZH

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular stranded (RM)
Core identification
Black
Halogen free
IEC 60754-1
Insulation
XLPE (Cross-linked Polyethylene)
Outer sheath
LSZH
Screen
Copper wires + copper tape
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
1

Usage characteristics

Usage characteristics

Smoke density
IEC 61034
Bending factor when laying
8 (xD)
Gases corrosivity
IEC 60754-2
Max. conductor temperature in service
90 °C
Operating temperature, range
-20 ... 60 °C
Short-circuit max. conductor temperature
250 °C
